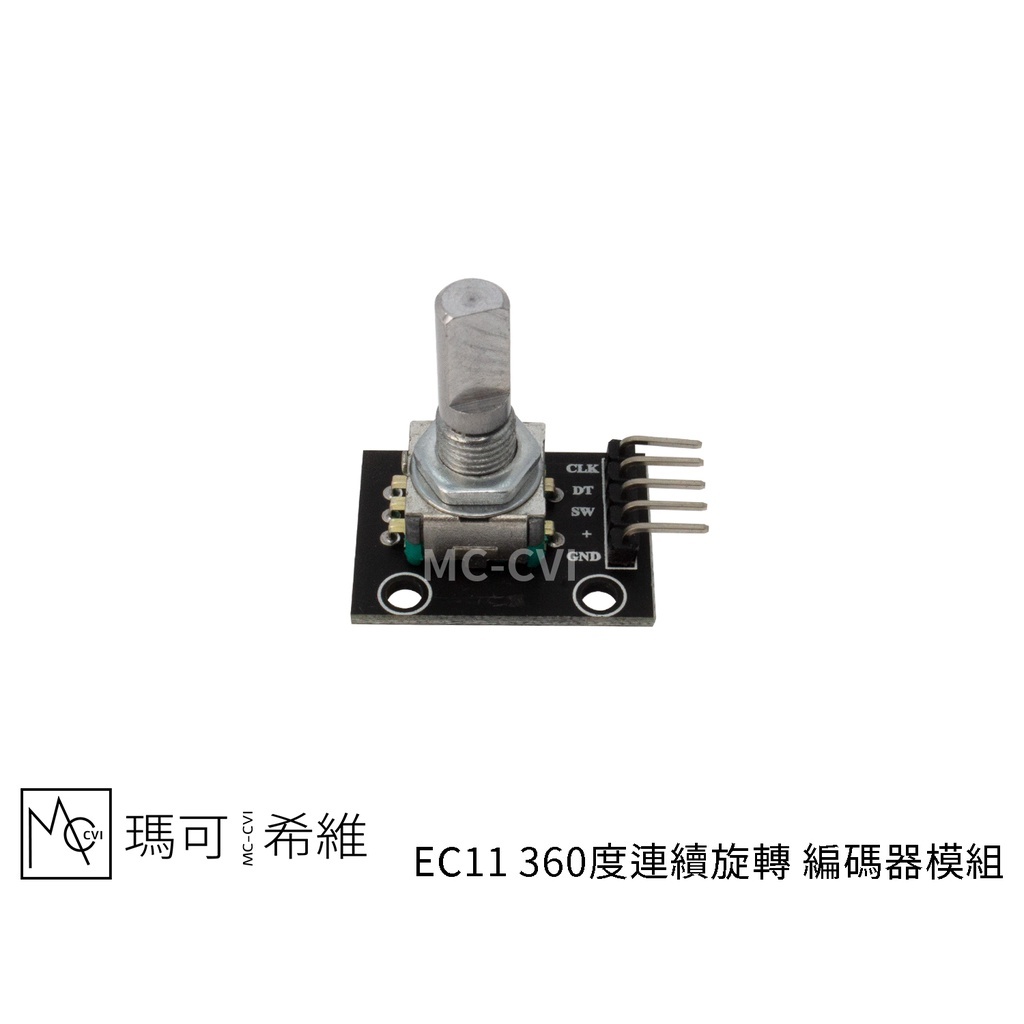

EC11 360 Degree Rotary Encoder Module

EC11 360 Degree Rotary Encoder Module

滿999元享免運 on order

NT$24
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Customer Reviews
Description

EC11 旋轉編碼器模組 產品特色

  • 本商品為20段編碼器，可連續轉超過360度及可以正逆轉
  • 每一段位都會輸出一個脈衝(一組方波)
  • 正轉與逆轉會輸出不同波形，轉軸可下壓，支援按鈕功能
  • 旋轉定義全由MCU自行制定，不需要被轉動角度綁定，隨時都可以自行規劃為歸零

EC11 旋轉編碼器模組 產品規格

項目 說明
工作電壓 5V
連結方法 2.54mm DIP
通訊方式 數位訊號

EC11 旋轉編碼器模組 硬體概述

項目 說明
◎ VCC 供電端
◎ GND 接地端
◎ CLK 逆轉訊號(請您參考附圖有說明為何稱這個為逆轉訊號)
◎ DT 正轉訊號(請您參考附圖有說明為何稱這個為正轉訊號)
◎ SW 轉軸可下壓，支援按鈕功能

EC11 旋轉編碼器模組 應用範圍

  • 數位型的音量控制
  • 各種機台、機器的馬達或其他設置控制
  • 消費型電子商品控制
  • 家電控制(如電風扇風量控制)
